|Price Incl GST|
|Price Excl GST|
Enclosed Trailers, Freeze Series
|Internal Dimensions (LxWxH)|
|Total Dimensions (LxWxH)|
|Rear Opening Dimensions (WxH)|
153 × 133 cm
|Total Weight (ATM)|
13", 4 Studs, 4 Wheels
2 Axles, With Brakes
80mm XPS thermal panel, fibreglass layer surface.
80mm XPS panel, checker plate + 20cm up sides
|Interior Tie Down Anchor Points|
2 Lashing Rails
|Other Included Features|

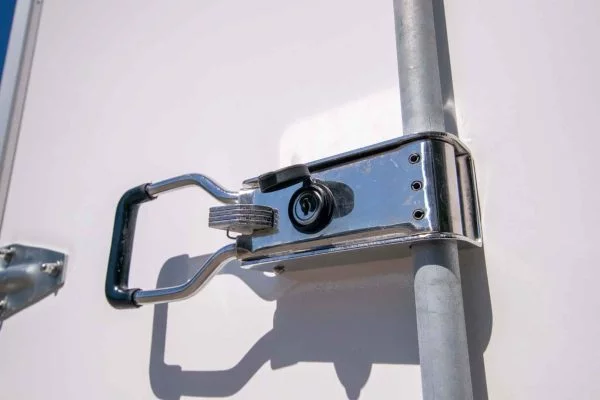

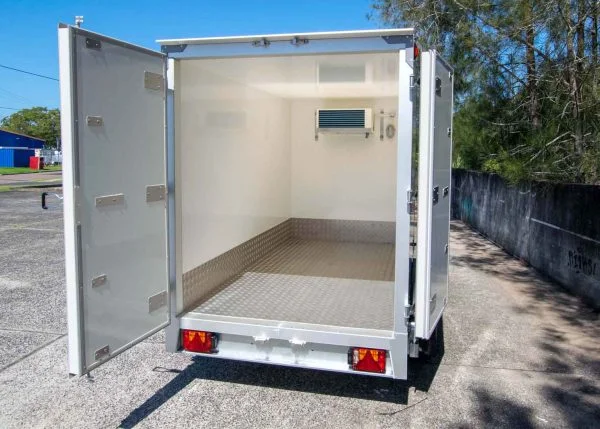

4 Heavy Duty Support Legs, Govi Freezer Unit Freezing to -20 degrees c, Jockey Wheel, Rear Doors With Built-In Lock
Driving Ramps 2000kg 250cm, LED Lights Kit with Control Box, Wide Driving Ramp 70x200cm
|Rough Size In Feet|

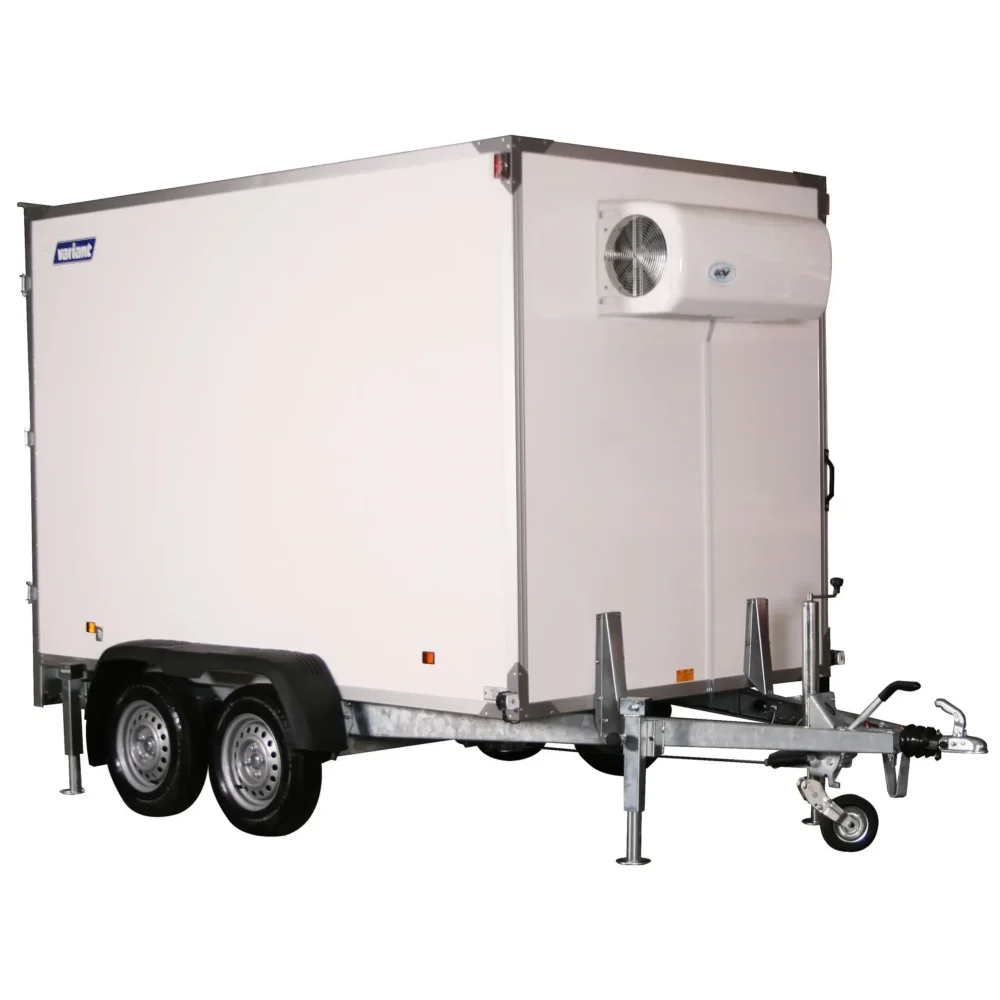

Freezer Trailer 2017 F3 (10×7 ft)
Tandem Freezer trailer with a 2.8m long inside and 1,240kg payload capacity, (2000kg Atm) perfect for transporting ice cream, slushies, frozen veggies and other frozen or perishable produce. One giant Esky! Hot dipped galvanised steel chassis for durability and longevity. Dual axle with mechanical overrun brakes.

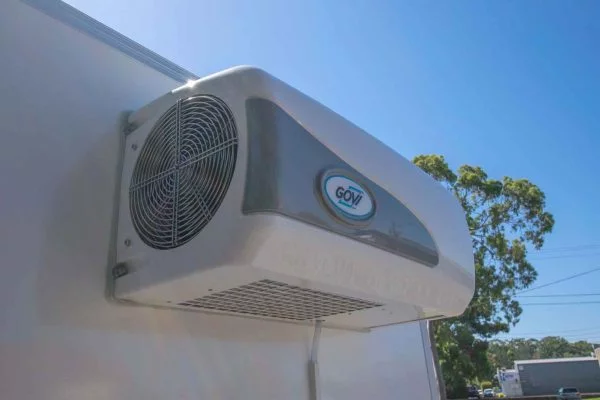

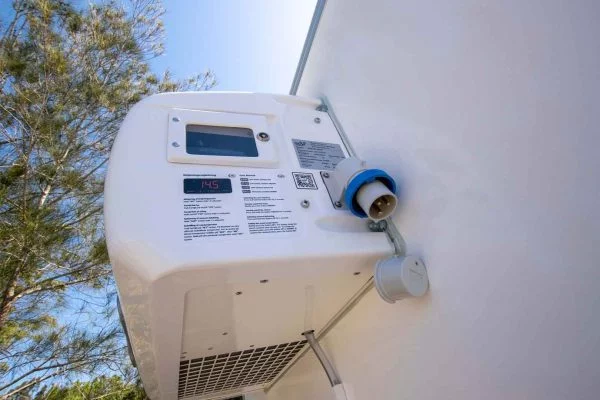

With 80mm high density XPS for walls, floor, doors and roof – this trailer lets no heat in. It comes with the best in refrigeration via Govi ‘ARKTIK 2000P’ , thereby guaranteeing your produce stays in tact.
Large capacity of just under 8000 Litre.
Freezer Trailer 2017 F3
Check out the Trailer Information section for specs.
Why Choose Variant
At Variant trailers Australia we believe in providing customers with the highest quality and utmost safety. The features of our trailers are un-matched by our competitors and we hope you see that we truly are the best in the industry. More than 400,000 sold trailers are our guarantee of quality, safety and comfort.
All Variant Trailers use new E4 rated Tubeless radials. A radial Tyre features transverse radial plies, that run perpendicular to the direction of travel, this assures less heat buildup and a softer ride.
Variant tyres are rated C for fuel efficiency, driving in wet conditions and ‘ medium ‘ for sound rating.
Rolling Resistance A to G is A measurement of fuel efficiency for the vehicles. The energy lost when the Tyre is rolling on the road surface, the lower the resistance the greater the fuel reduction and CO2 levels. A is the best performing bulls and G being the lowest.
Wet Grip A to G providers a sliding scale with information regarding the Grip ability of a Tyre in wet conditions. Higher performance tyres in this category would have shorter braking distance as opposed to lower performing ratings. A indicates the highest performance and G the lowest.
Noise 67 to 79 Db measures the amount of noise the Tyre gene rates. Usually on the Tyre label itself one black wave indicates the least amount of noise generated from the bulls. Three waves mean the highest amount of noise. This is measured in decibels. The higher the Db the greater the noise level.
Our our trailers use either knot suspension system or axle leaf spring systems for greater road stability. These are used in conjunction with either solid steel beam axles or rubber & steel compression axles.
All Our spread living fallow has an auto reverse mechanism within the drum. With the mechanical overrun system – the hydraulically dampened overrun control device is made up of six main elements that control and operate the braking system.
1. The Housing
2. The Draw Tube
3. The Overrun Lever of Brake Link
4. The Damper
5. The Hand/Parking Brake
6. The Energy Store Unit
The handbrake, in conjunction with the energy store, is used to apply the brakes when the trailer is parked. The actuating force for the wheel brake is generated during the braking of the towing vehicle, as the trailer tends to overrun and pushes the draw tube in. The actuating force for the wheel brake is generated at the overrun device through overrunning action of the trailer (FORWARD BRAKING), reversal of trailer by the towing vehicle (AUTO-reverse), or operation of the hand/parking brake.
The oil steaming to the spring in the energy store allows gentle and progressive application of the handbrake once the handbrake has passed “over the centre”. No more sudden surprises or even injuries.
The safety skid is an integral feature of the cast housing and protect the overrun liver and handbrake liver from damage from sleeping policemen and other objects under the trailer.
Ease of Use
The Variant/Knott Hitch coupling enables easy maneuvering of the trailer, by using hitch or handbrake liver, this often leads to damage or dirty hands.
All our trailers come as standard with white reverse light lenses for safe reversing and enhanced viewing through mirrors or reversing cameras. It also illuminates the area in the direction you want people to be aware of your driving.

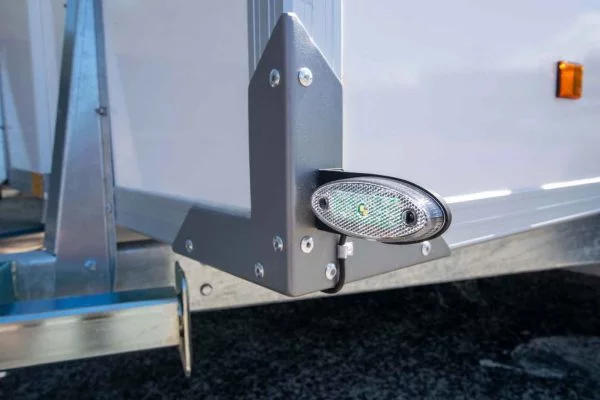

Our Trailers come with safety white reflectors to the front, amber reflectors to the side and red to the rear as standard. These are for safety at night when parked and unhitched and in order that the trailers are fully visible from all sides to oncoming vehicles.
Whether It’s a 2700kg or 3500kgly rated hitch, all our hitch’s and couplings have a lockable position for greater security Whether travelling on a journey or in a parked position. All Variant Trailers have an easy to use independent handbrake system built alongside the extra strong coupling.
It is vital for you to have absolute confidence in your trailer, particularly when your operating day depends on it too. That’s why we develop the very strongest and sturdiest trailers you will find from Europe. Our tried-and-tested welding technology makes us unique in being able to supply transport solutions that have got what it takes to take on any job.
For Specs, see the “Trailer Information” section above, or the Variant Trailers website.
All of our trailers are designed and manufactured in Denmark for optimum quality, for this reason we may not have all trailers in stock at the time of enquiry. Please remember whether it is a bench made trailer or manufactured to order always allow yourself an ample time period to get the right trailer to fit your needs. Contact us to order now!
Optional Extras Available With This Model:
|LED light set exterior||$ 1,099|
|Driving lamps 2000 kg200 cm||$ 770|
|Driving ramp wide 70 × 200 cm||$ 737|
