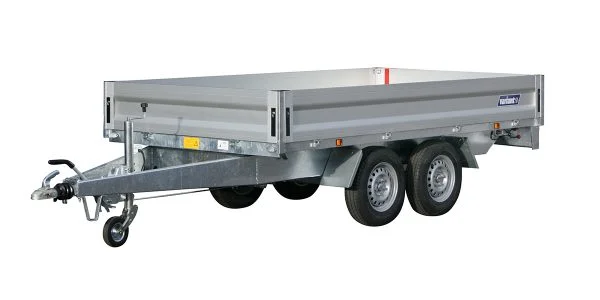

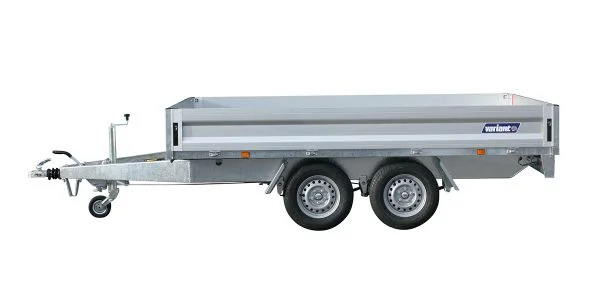

Tipper Trailer 2717 T3 (10.6×5.6 ft)

$9,922.00

Aluminium electric hydraulic tipper trailer. 3.2m long box and 1,948kg payload capacity, perfect for transporting and dumping gravel, sand, rubble and other construction materials. Galvanised steel base & chassis for durability and longevity. Dual axle with mechanical overrun brakes.

Additional information

Manufacturer

Variant

Product Code

2717 T3

Series

1-Way Tip Series, Tipper Trailers

Internal Dimensions (LxWxH)

320x168x35 cm

Total Dimensions (LxWxH)

465x175x105 cm

Tare Weight

752 kg

Total Weight (ATM)

2,700 kg

Payload Capacity

1,948 kg

Loading Height

70 cm

Wheels

13", 5 Studs, 4 Wheels

Axles

2 Axles, With Brakes

Opening / Detachable Sides

All 4 Sides

Side Material

Aluminium

Floor Material

Hot Dipped Galvanised Steel

Lashing Rings

6 Hooks

Other Included Features

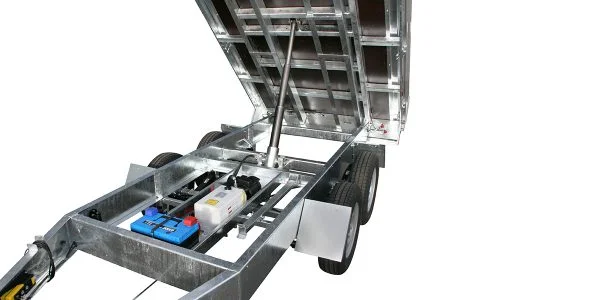

13 or 7 Pin Plug, Corded Remote Control, Electric Hydraulic Tip, Jockey Wheel, Parabolic Leaf Springs, Removable Corner Posts

Tip Type

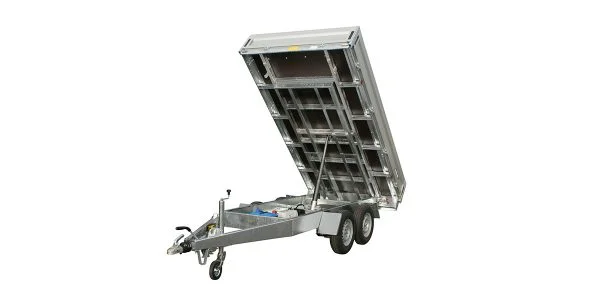

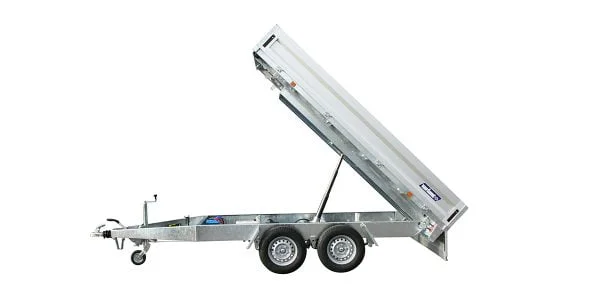

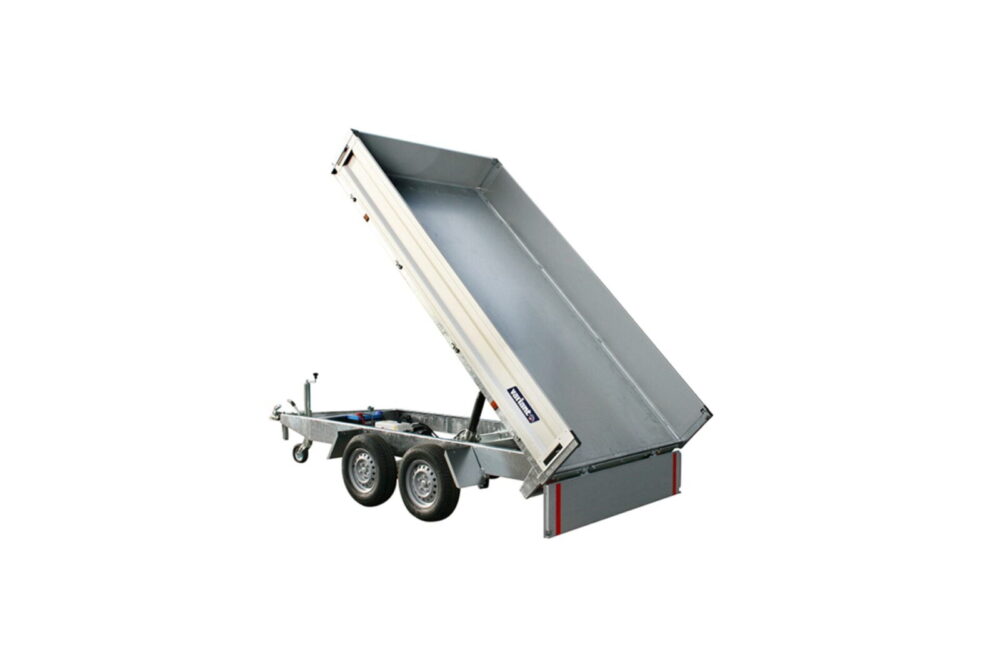

Hydraulic Tip

Back Tip Angle

45 degrees

Optional Extras

Cage Grill Sides 60cm, Driving Ramps 4000kg 260cm, Extra Height Opening Steel Sides 35cm, Fixed Charger, Flat Tarp, High Tarp with Inside Framing 145cm, LED Lights Kit with Control Box, Loose Charger, Support Legs / Prop Stands x2, Wireless Tipping Via Phone App

Rough Size In Feet

10.6×5.6

Description

Tipper Trailer 2717 T3

  • More than 400,000 sold trailers are our guarantee of quality, safety and comfort.
  • Our chassis frames are hot dipped galvanised and with high demands on quality, safety and reliability – that’s why we develop the very strongest and sturdiest trailers you will find from Europe.
  • New E4 rated Tubeless radials on all wheels.
  • Using either knot rubber torsion suspension system or axle leaf spring systems for greater road stability.
  • With safety white reflectors to the front, amber reflectors to the side and red to the rear as standard.
  • Bright White safety reversal light.
  • Whether It’s a 2000kg, 2700kg or 3500kged knot, all couplings have a lockable position for greater security.
  • Our Knott Braking system is of the mechanical overrun type – the hydraulically dampened overrun control device includes drum braking to all wheels, a dedicated handbrake and auto reverse mechanism.
  • TUV load securing system with lashing brackets integrated into the side edges.
  • Removable corner posts.
  • Unique Easy Attachment panel hinges.
  • Heavy profileed aluminum Front, rear and side panels with integrated fasteners.
  • When Choosing your trailer, you will see that our tare weights are lower meaning greater payloads and overall reduced fuel consumption.
  • Our trailers are designed to get the job done in the right situation.
  • We deliver to businesses, government and private individuals, who want to work with the strongest trailers.
  • Extra weather treatments can be added to your trailer to increase protection against atmosphere and increase weather repellence.

For Specs, see the “Trailer Information ” section above.

Contact us to order now! Price is yet to confirmed, please contact us for more details.

Optional Extras Available With This Model:

Flat Tarp $                322
Extra alusides open up. 35 cm $             1,576
Cage 60cm $             1,674
Rear leg 1 pcs. $                158
Front stand  70 cm $                234
Wireless service. of tips (App / Tel.) $                528
LED light kit incl. control box $                762
Driving ramps 4000 kg 260 cm $             1,180
