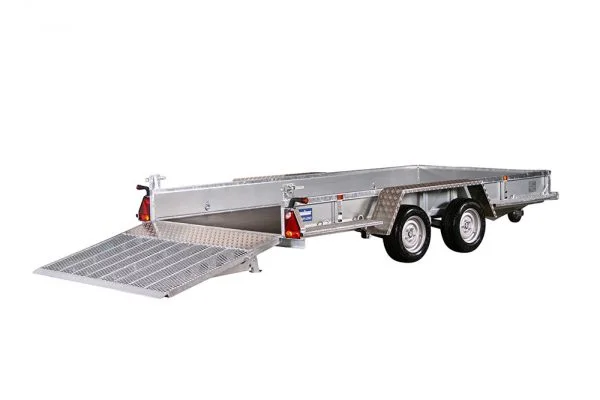

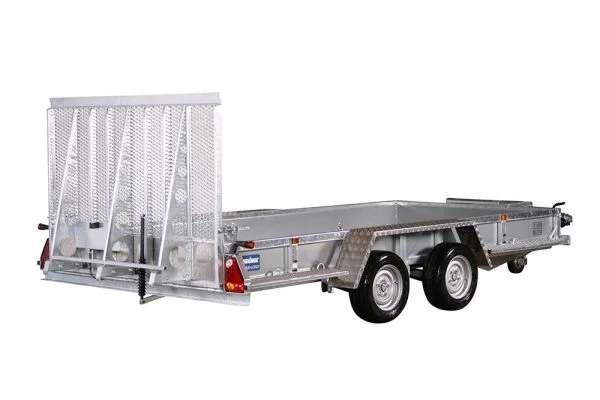

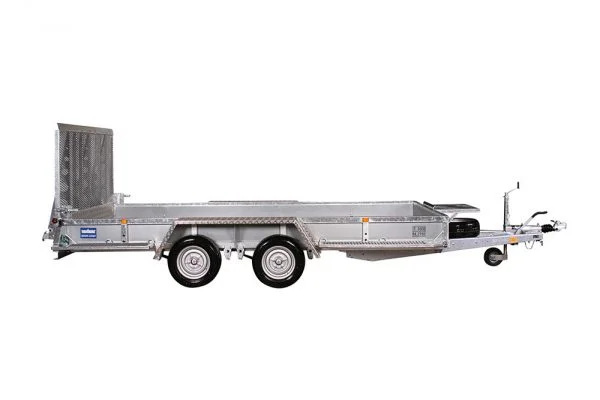

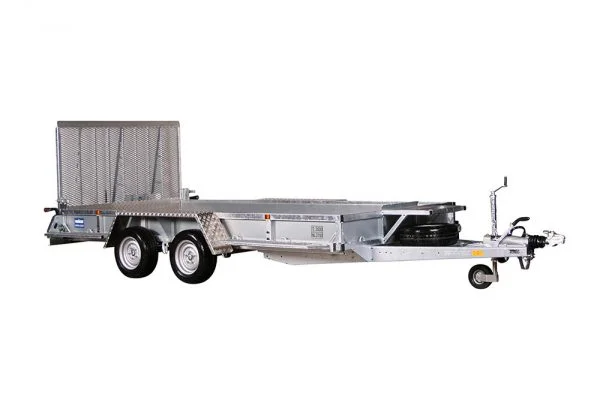

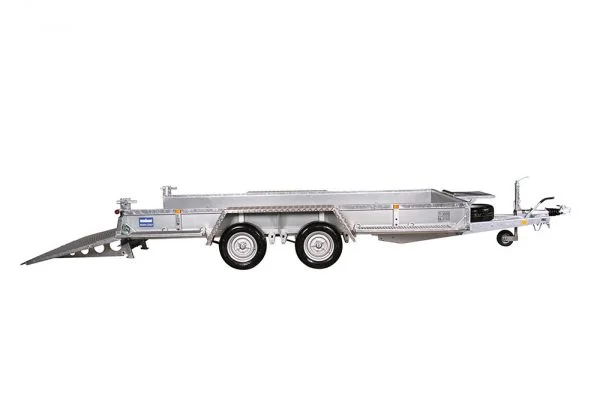

Plant Trailer 3518 M4 – 3,500Kg – 4.00 x 1.80m

Tandem machine transporter with strong back ramp. 4m long box and 2,685kg payload capacity, perfect for transporting large heavy machinery and equipment. Galvanised steel sides & chassis for durability and longevity. Dual axles with mechanical overrun brakes, breakaway cable and sealed for life Knott bearings.

As a Danish concept, Variant sets design standards in Australian trailer engineering quality, new sizing – return on your trailer investment. The resulting longevity of quality trailer components will continue delivering service for years to come. Flat bed trailers from 1.5m to 6.2m long, Weatherproof plywood or steel floor, from 1.4m to 2.5m wide. Low tare & low coupling weight, high strength – hot-dip galvanised chassis. Federally approved to RVSA 2023. German mechanical override braking, breakaway cable, auto-reverse, balanced centre of gravity load trailer. No need for electric brake controller. Suitable for companies with multiple trailer use, fleet and hire, mining, civil and trackside.

Our trailer yard is in Erina, Central Coast. We have customers in and also deliver to Sydney, Newcastle, New South Wales, Victoria, Queensland, Western Australia, Tasmania, Australian Capital Territory and Northern Territory.

Additional information

Weight	5 kg
Manufacturer	Variant
Product Code	3518 M4
Series	Auto-Transporters, Machine Series
Trailer Internal Size (LxWxH)	400x180x30 cm
Total Trailer Size (LxWxH)	600x234x168 cm
Trailer Tare Weight	815 kg
Trailer Weight (ATM)	3,500 kg
Trailer Payload	2,685 kg
Trailer Loading Height	38 cm
Light Trailer Wheels	12", 5 Studs, 5 Wheels (4+spare)
Axles	2 Axles, With Brakes
Side Material	Galvanized Steel
Trailer Floor Material	Phenolic Plywood 18mm
Interior Tie Down Anchor Points	4 Hooks
Exterior Lashing Hooks	10 Hooks
Ramp Angle	17 degrees
Other Included Features	13 or 7 Pin Plug, Anti-Slip Tred Plates, Gas Struts On Back Ramp, Jockey Wheel, Parabolic Leaf Springs, Platform For Shovel, Spare Wheel, Strong Tailgate Ramp 130cm
Optional Trailer Extras	Aluminium Floor Material, LED Lights Kit with Control Box, Tie-Down Rings Base Mounted, Wheel Change to 13" Terrain, Wheel Change to 14" High Profile
Trailer Size to Feet	13×6 ft

Description

Plant Trailer 3518 M4

Variant Plant Trailer 3518 M4- 4m long box and 2,685kg payload capacity, perfect for transporting large heavy machinery and equipment. Easy loading and unloading of heavy auto or machinery to trailer, with strong rear ramp.

More than 400,000 sold trailers are our guarantee of quality, safety and comfort.
Our chassis frames are hot dipped galvanised and with high demands on quality, safety and reliability – that’s why we develop the very strongest and sturdiest trailers you will find from Europe.
New rated Tubeless radials on all wheels.
Using either Knott rubber torsion suspension system or axle leaf spring systems for greater road stability.
With safety white reflectors to the front, amber reflectors to the side and red to the rear as standard.
Bright White safety reversal light.
Our Knott Braking system is of the mechanical overrun type – the hydraulically dampened overrun control device includes drum braking to all wheels, a dedicated handbrake and auto reverse mechanism.
TUV load securing system with lashing brackets integrated into the side edges.
Heavy profiled aluminium front, rear and side panels.
When choosing your trailer, tare weights are lower meaning greater payloads, smoother towing and overall reduced fuel consumption.
Our trailers are designed to get the job done in the right situation.
We deliver to business, government and private individuals, fleet and hire.
Extra weather treatments can be added to your trailer to increase protection against atmosphere and increase weather repellence.

Low coupling weight, balanced centre of gravity load trailer. Designed for towing not dragging your loads. Tie down brackets (built-in) -either side.
Full RVS approved with ADR approved mechanical overrun brakes and emergency breakaway cable – no electric control needed.
Two-year warranty, full-service support. Parts -spares available 24/7.

Optional Extras Available With This Model:

Aluminium Floor- Increase trailer life and provide a non-slip flooring.
Toolbox mounted below floor- Built in lock for storage of small items such as tools or straps.
Shock absorbers (excl. Approved)- Smoother towing of trailer with these to absorb or dampen the compression and rebound of the springs and suspension.
Wheel change to 14 “high profile- Raises trailer deck by approximately 80cm.

For additional trailer information, see the “Specifications” section above, or the Variant Trailers website.

Variant trailers are designed and manufactured in Denmark with maximum quality and strength, sometimes the trailer for sale may not be one of the trailers in stock. We pride ourselves with the finest of quality & crafted galvanised trailers for sale, that will suit your needs with designs to meet your trailer requirements. When searching Google or Bing- trailers for sale, think robust, tough, capacity, weight, ease of use and towability, for maximum return on your investment. Contact us to order your trailer now!
