Tipper Trailer 3519 TB (12×6 ft)

$12,871.00

Tandem Aluminium electric hydraulic three-way tipper trailer. 3.7m long box and 2,480kg payload capacity,  perfect for transporting and dumping gravel, sand, rubble and other construction materials. Hot dipped Galvanised steel base & chassis for durability and longevity. Dual axles with mechanical overrun brakes.

Price Incl GST

$12,871

Price Excl GST

$11,701

Manufacturer

Variant

Product Code

3519 TB

Series

3-Way Tip Series, Tipper Trailers

Internal Dimensions (LxWxH)

368x190x35 cm

Total Dimensions (LxWxH)

514x200x118 cm

Tare Weight

1,020 kg

Total Weight (ATM)

3,500kg

Payload Capacity

2,480 kg

Loading Height

72 cm

Wheels

13", 5 Studs, 4 Wheels

Axles

2 Axles, With Brakes

Opening / Detachable Sides

All 4 Sides

Side Material

Aluminium

Floor Material

Hot Dipped Galvanised Steel

Interior Tie Down Anchor Points

8 Hooks

Other Included Features

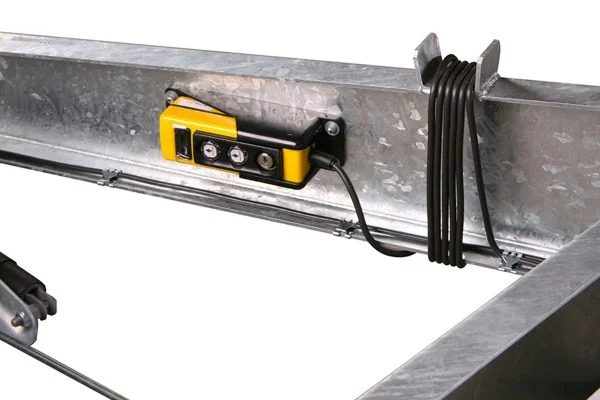

13 or 7 Pin Plug, Ball Coupling With Inbuilt Lock, Corded Remote Control, Electric Hydraulic Tip, Jockey Wheel, Manual Emergency Pump, Parabolic Leaf Springs, Wireless Operation Via Phone App

Tip Type

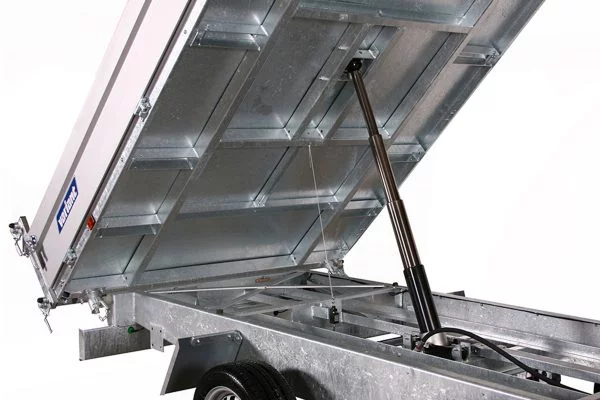

Hydraulic Tip

Back Tip Angle

42 degrees

Side Tip Angle

53 degrees

Optional Extras

Cage Grill Sides 100cm, Cage Grill Sides 60cm, Driving Ramps 4000kg 260cm, Extra Height Opening Steel Sides 35cm, Flat Tarp, Ladder Rack 70cm, LED Lights Kit with Control Box, Support Leg In The Back x1, Wheel Change to 13" Terrain, Wheel Change to 14" High Profile, Wireless Remote Control

Rough Size In Feet

12×6

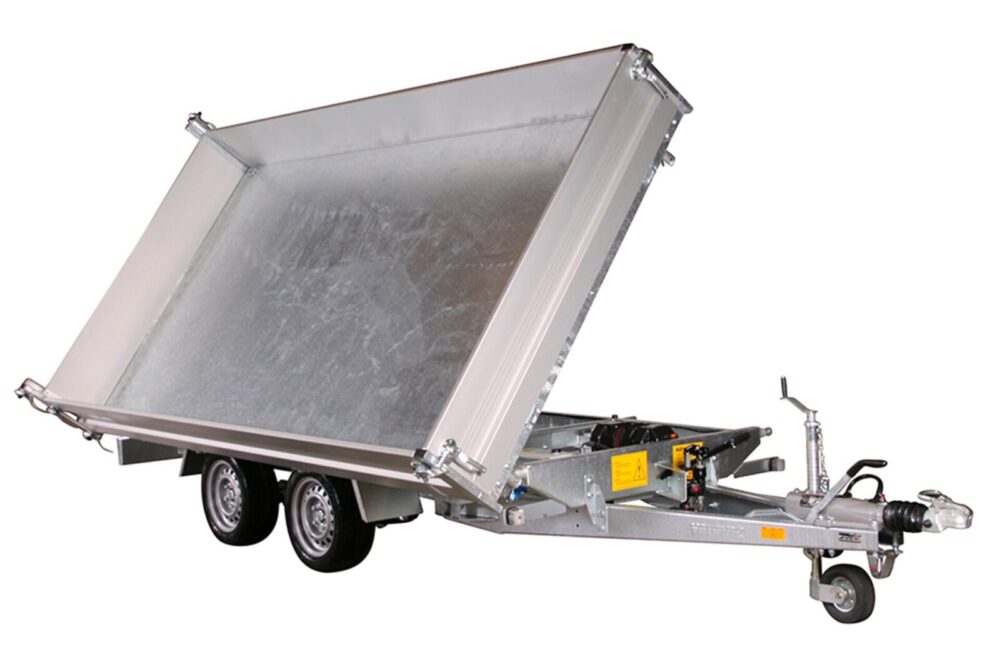

Three Way Tipper Trailer 3519 TB

Just like the 3017 TB and 3517 TB, this trailer also tips in three directions.

  • More than 400,000 sold trailers are our guarantee of quality, safety and comfort.
  • Our chassis frames are hot dipped galvanised and with high demands on quality, safety and reliability – that’s why we develop the very strongest and sturdiest trailers you will find from Europe.
  • New E4 rated Tubeless radials on all wheels.
  • Using either knot rubber torsion suspension system or axle leaf spring systems for greater road stability.
  • With safety white reflectors to the front, amber reflectors to the side and red to the rear as standard.
  • Bright White safety reversal light.
  • Whether It’s a 2000kg, 2700kg or 3500kged knot, all couplings have a lockable position for greater security.
  • Our Knott Braking system is of the mechanical overrun type – the hydraulically dampened overrun control device includes drum braking to all wheels, a dedicated handbrake and auto reverse mechanism.
  • TUV load securing system with lashing brackets integrated into the side edges.
  • Removable corner posts.
  • Unique Easy Attachment panel hinges.
  • Heavy profileed aluminum Front, rear and side panels with integrated fasteners.
  • When Choosing your trailer, you will see that our tare weights are lower meaning greater payloads and overall reduced fuel consumption.
  • Our trailers are designed to get the job done in the right situation.
  • We deliver to businesses, government and private individuals, who want to work with the strongest trailers.
  • Extra weather treatments can be added to your trailer to increase protection against atmosphere and increase weather repellence.

For Specs, see the “Trailer Information” section above, or the Variant Trailers website.

All of our trailers are designed and manufactured in Denmark for optimum quality, for this reason we may not have all trailers in stock at the time of enquiry. Please remember whether it is a bench made trailer or manufactured to order always allow yourself an ample time period to get the right trailer to fit your needs. Contact us to order now!

Optional Extras Available With This Model:

Flat Tarp $                539
Extra alusides open up. 35 cm $             1,705
Cage 60cm $             1,887
Cage 100 cm $             2,475
Backrests  1 pc. $                248
front Stand $                231
Wireless remote control $                330
LED light kit incl. control box $             1,099
Wheel change to 13 “terrain $                220
Wheel change to 14 “high profile $                141
Driving ramps 4000 kg 250 cm $             1,133
