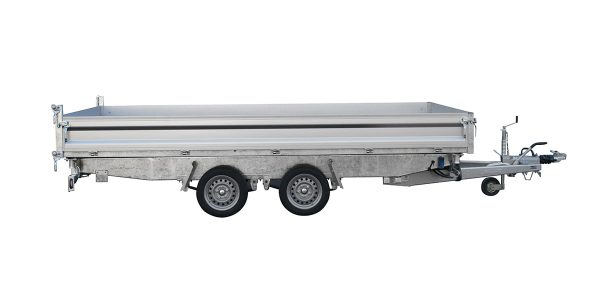

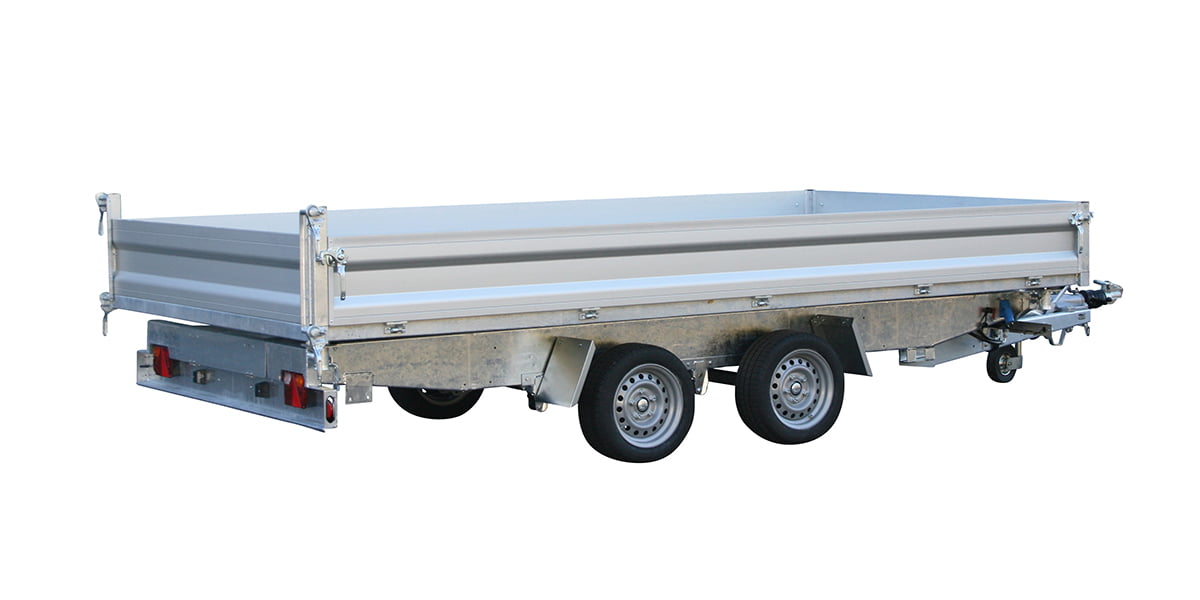

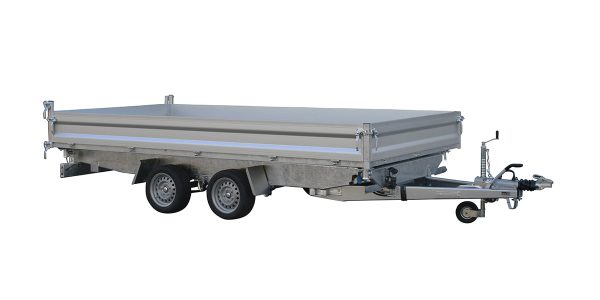

Tipper Trailer 3521 TB – 3,500Kg -4.14 x 2.10m

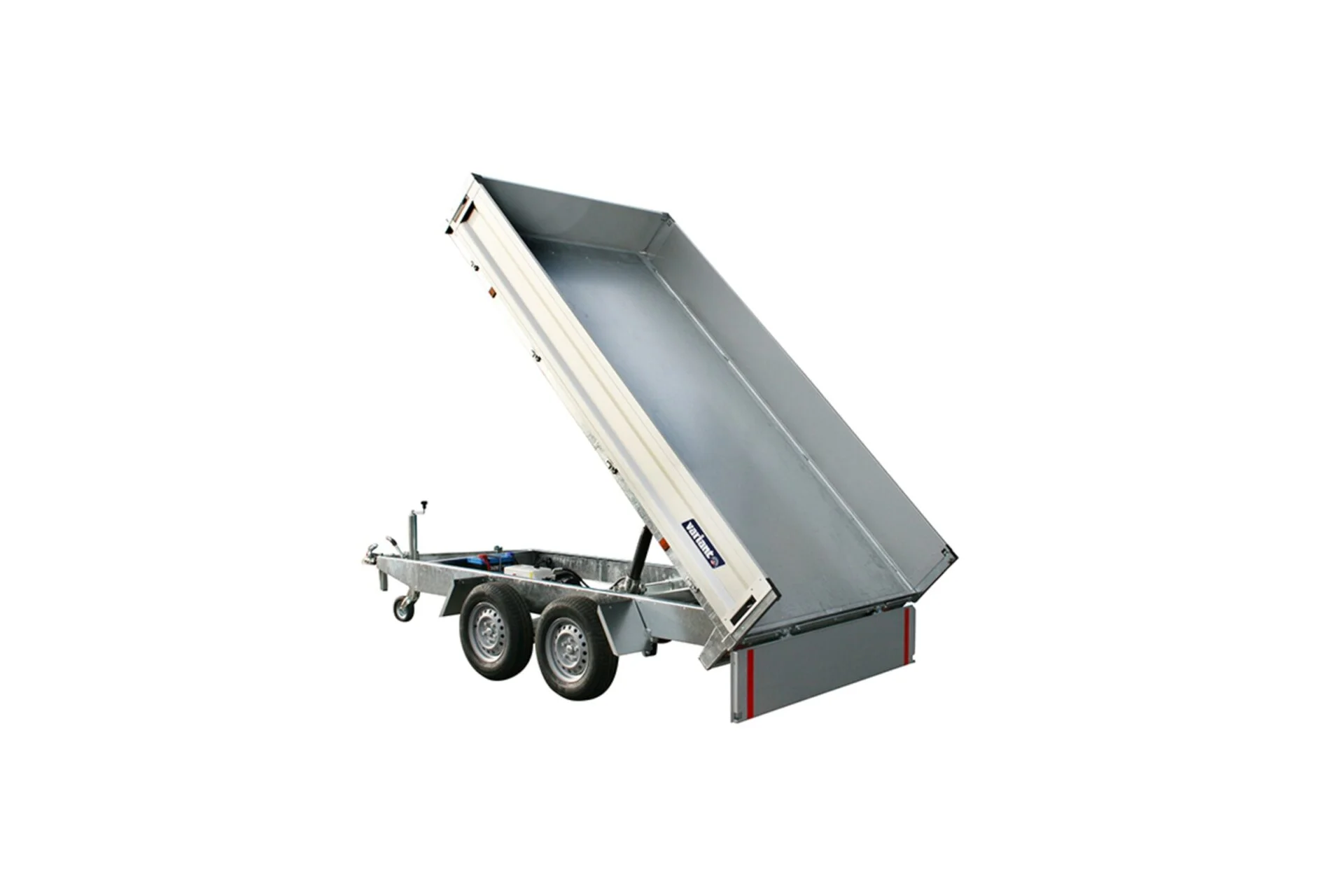

Tandem Aluminium electric hydraulic three-way tipper trailer. 4.14m long box and 2,344kg payload capacity, perfect for transporting and dumping gravel, sand, rubble and other construction materials. Hot dipped Galvanised steel base & chassis for durability and longevity. Dual axles with mechanical overrun brakes. Wheels mounted underneath allowing all sides opening & removable for easy forklift loading & unloading. Full RVS approved with ADR approved mechanical overrun brakes and emergency breakaway cable (Max safety) – no electric control needed.

As a Danish concept, Variant sets design standards in Australian trailer engineering quality, new sizing – return on your trailer investment. The resulting longevity of quality trailer components will continue delivering service for years to come. Flat bed trailers from 1.5m to 6.2m long, Weatherproof plywood or steel floor, from 1.4m to 2.5m wide. Low tare & low coupling weight, high strength – hot-dip galvanised chassis. Federally approved to RVSA 2023. German mechanical override braking, breakaway cable, auto-reverse, balanced centre of gravity load trailer. No need for electric brake controller. Suitable for companies with multiple trailer use, fleet and hire, mining, civil and trackside.

Our trailer yard is in Erina, Central Coast. We have customers in and also deliver to Sydney, Newcastle, New South Wales, Victoria, Queensland, Western Australia, Tasmania, Australian Capital Territory and Northern Territory.

Additional information

Weight	5 kg
Manufacturer	Variant
Product Code	3521 TB
Series	3-Way Tip Series, Tipper Trailers
Trailer Internal Size (LxWxH)	414x210x35 cm
Total Trailer Size (LxWxH)	560x225x118 cm
Trailer Tare Weight	1,156 kg
Trailer Weight (ATM)	3,500 kg
Trailer Payload	2,344 kg
Trailer Loading Height	72 cm
Light Trailer Wheels	13", 5 Studs, 4 Wheels
Axles	2 Axles, With Brakes
Opening / removeable Sides	All 4 Sides
Side Material	Aluminium
Trailer Floor Material	Hot Dipped Galvanised Steel
Lashing Rings	8 Hooks
Other Included Features	Corded Remote Control, Electric Hydraulic Tip, Jockey Wheel, Manual Emergency Pump, Parabolic Leaf Springs, Ramp Drawers
Tipping Type	Hydraulic Tip

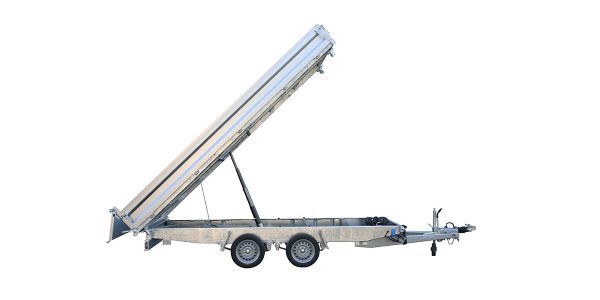

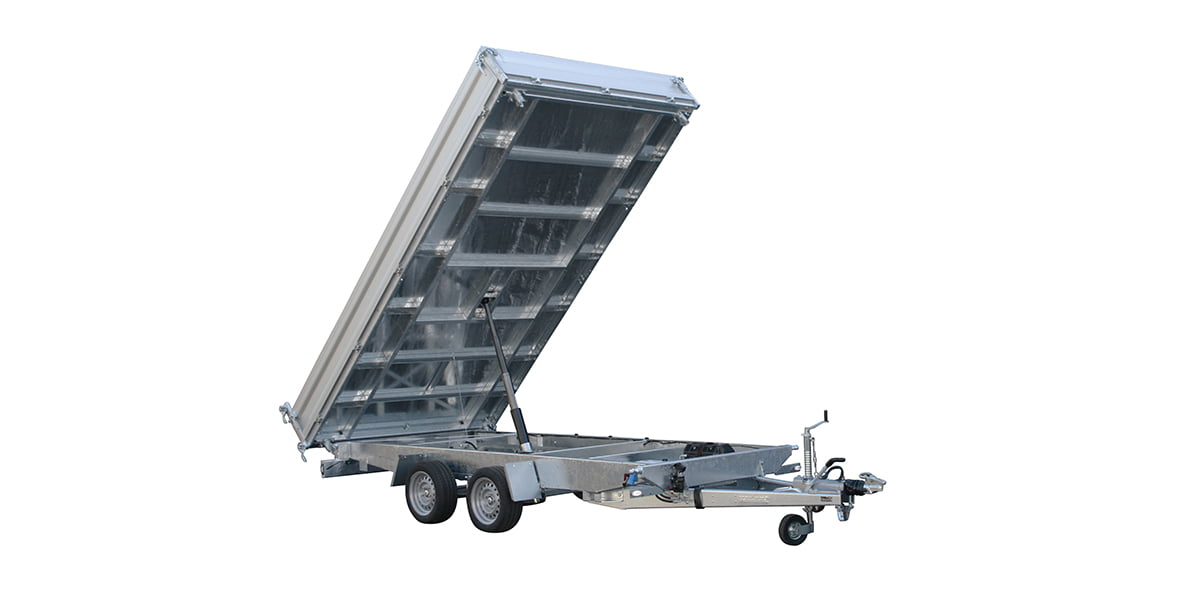

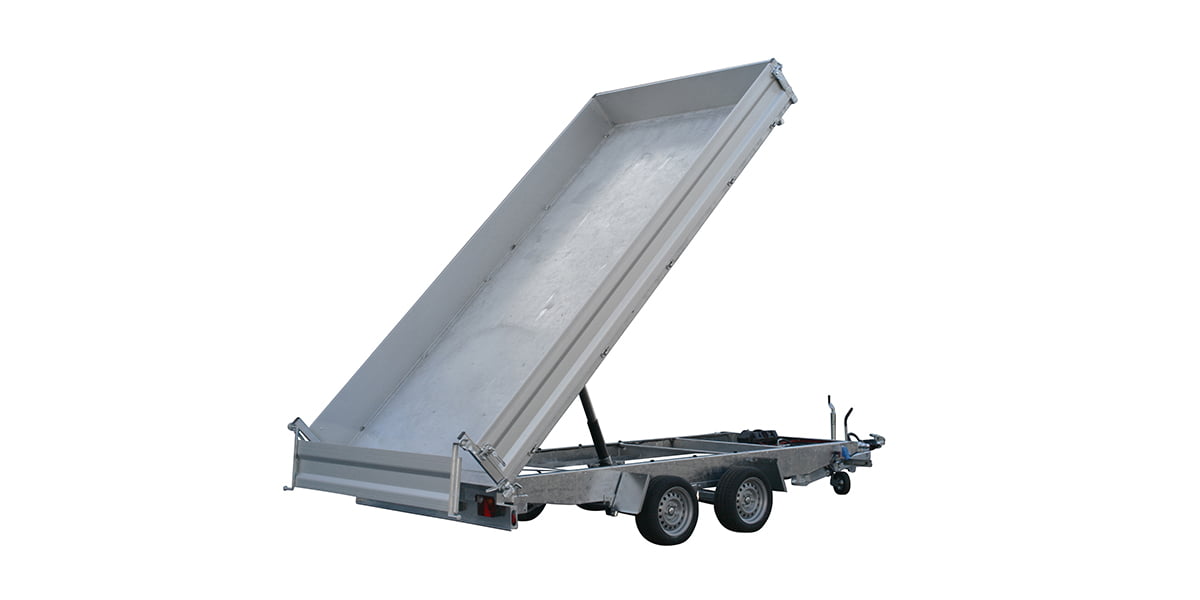

Back Tip Angle	44 degrees

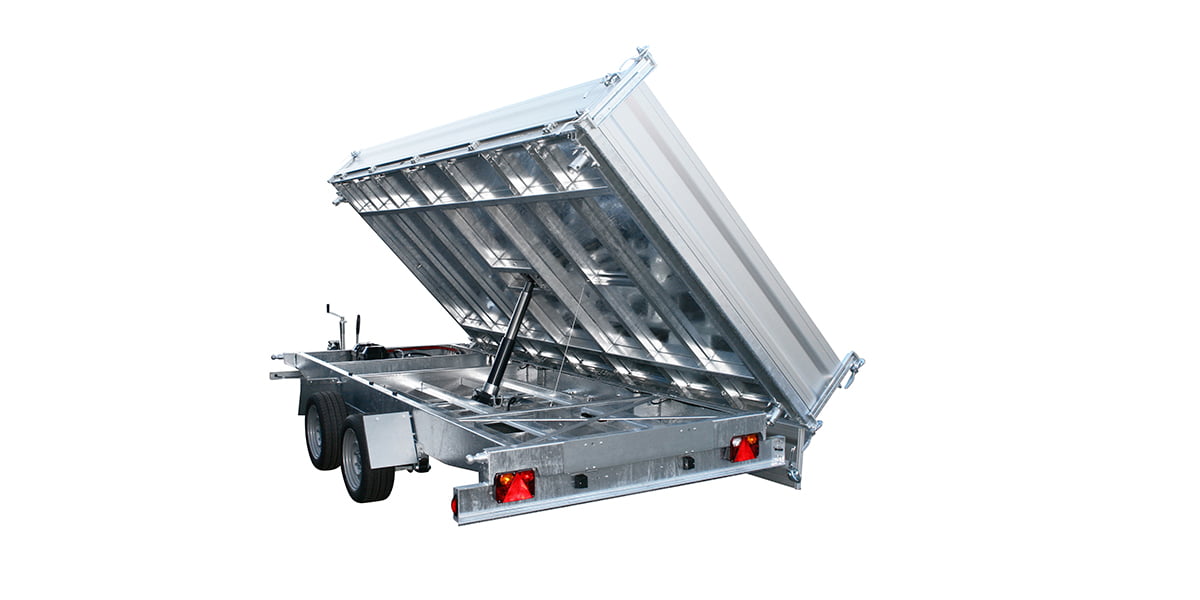

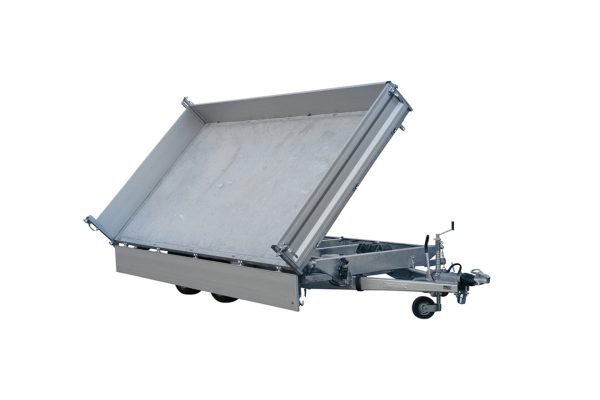

Side Tipper Angle	53 degrees
Optional Trailer Extras	Cage Grill Sides 100cm, Cage Grill Sides 60cm, Driving Ramps 4000kg 260cm, Extra Height Opening Steel Sides 35cm, Flat Tarp, Ladder Rack 70cm, LED Lights Kit with Control Box, Support Leg In The Back x1, Wheel Change to 13" Terrain, Wheel Change to 14" High Profile, Wireless Remote Control, Wireless Tipping Via Phone App
Trailer Size to Feet	13.6×7

Description

THREE WAY TIPPER TRAILER 3519 TB

More than 400,000 sold trailers are our guarantee of quality, safety and comfort.
Our chassis frames are hot dipped galvanised and with high demands on quality, safety and reliability – that’s why we develop the very strongest and sturdiest trailers you will find from Europe.
New rated Tubeless radials on all wheels.
Using either Knott rubber torsion suspension system or axle leaf spring systems for greater road stability.
With safety white reflectors to the front, amber reflectors to the side and red to the rear as standard.
Bright White safety reversal light.
Our Knott Braking system is of the mechanical overrun type – the hydraulically dampened overrun control device includes drum braking to all wheels, a dedicated handbrake and auto reverse mechanism.
TUV load securing system with lashing brackets integrated into the side edges.
Removable corner posts.
Unique Easy Attachment panel hinges.
Heavy profiled aluminum front, rear and side panels with integrated fasteners.
When choosing your trailer, tare weights are lower meaning greater payloads, smoother towing and overall reduced fuel consumption.
Our trailers are designed to get the job done in the right situation.
We deliver to business, government and private individuals, fleet and hire.
Extra weather treatments can be added to your trailer to increase protection against atmosphere and increase weather repellence.

Variants MAXI-LOAD tippers are professional and strong 3-way tippers with electric hydraulic tip.

The All-new 3-way tippers complete, strong and sturdy.

The suspension is excellent thanks to through-axles with parabolic leaf springs and the large brake drums with closed bearings.

The base of the trailer is a continuous steel plate folded and galvanized.

The new tipper is with sturdy lashing hooks, built-in driving ramp drawers and high tip angle for all sides.

Electric hydraulic Pump, manual override, built-in battery and charger are standard.

The inertia brake is with built-in reverse and powerful contractor jocky wheel.

35cm double profile aluminium sides – fantastic business marketing/advertising panels. Rubber torsion independent suspension. Low tare -max payload.

Low coupling weight, balanced centre of gravity load trailer. Designed for towing not dragging your loads. Tie down brackets (built-in) -either side.

Full RVS approved with ADR approved mechanical overrun brakes and emergency breakaway cable – no electric control needed.

Two-year warranty, full-service support. Parts -spares available 24/7.

Optional Extras Available With This Model:

Flat Tarp- To cover and protect trailer contents.
Extra alusides open up. 35 cm- Increasing trailer load with additional space.
Cage 60cm, or 80 cm – Trailer Cage in two sizes, strong quality, front and rear accessibility.
Front stand 70cm- Mounted in corner posts for lashing items securely to trailer.
Wireless remote control-
LED light kit incl. control box- Trailer light replacement kit.
Wheel change to 14 “high profile- Raises trailer deck by approximately 80cm.
Driving ramps 4000 kg 250 cm- Easy loading and unloading of heavy auto or machinery to trailer.

For additional trailer information, see the “Specifications” section above, or the Variant Trailers website.
