Scanvogn – Decontamination Trailer 570 (5.7 x 2.2 x 2.9 m)

Decontamination Trailer 570

A flexible office

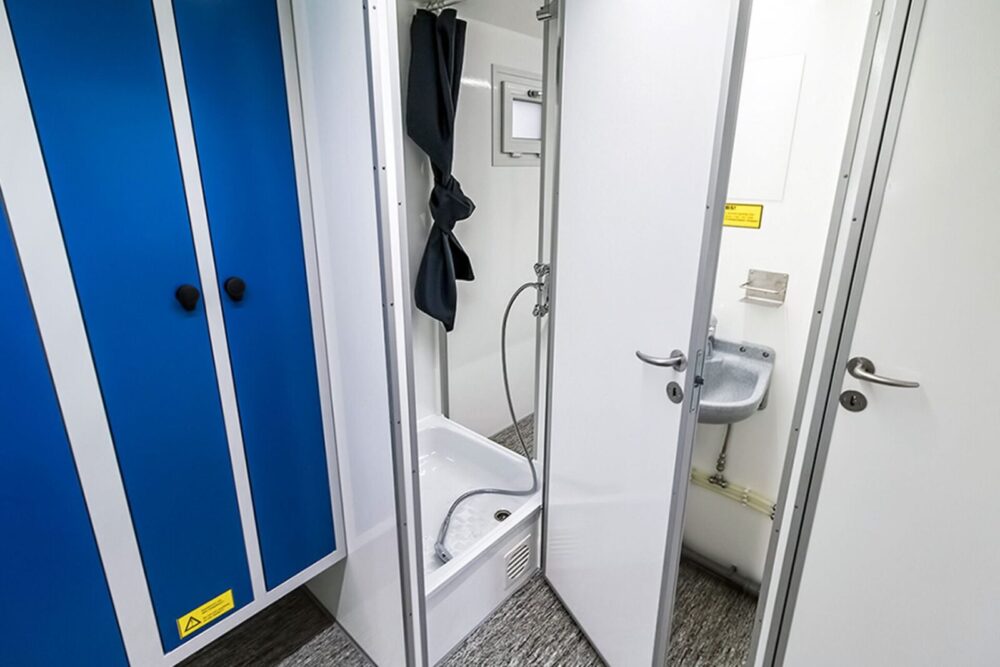

The Environment Cabin (aka decontamination cabin) consists of two separate zones. Zone 1 is for storing dirty work clothes and contains cupboards, a hand basin and shower cabinet. Zone 2 resembles a standard staff cabin with cupboards and normal clothes storage, a living area and toilet. You can  upgrade the cabin with mini kitchen, utility room and extra shelves. All Scanvogn cabins are customisable so if the standard solution is not quite what you need,  you can make your portable bathroom exactly the way you want it. There is a range of additional options that can be included.

Simular to the 570 office trailer, 570 staff trailer and 570 pioneer cabins, The 570 is the biggest standard office unit that can be imported into Australia in a shipping container.

Toilet Type

This model comes equipped with our standard flushing toilet waste disposal. For people who have a connection to external water and drainage on site, then this is the toilet solution for you. The toilet works like a normal toilet in the home (but with disposal for extra reliability) and therefore feels natural and comfortable. We supply the toilet in an upright or wall-mounted version, and with or without visible pipes. If the pipes are hidden, the cabin is built with a technical compartment, for easy servicing of the toilet. You can choose to change the toilet type to any of our 4 toilet types including Vacuum and combustion. Or you can choose to have your portable office without a toilet for additional space.

  • With water flushing toilet $38,424
  • With toilet & grinder: $39,159

Easy to use and clean

The trailer is connected to a standard towbar and can be set up and ready in a few minutes. This makes it possible to move the unit from place to place quickly and efficiently without any hassle. The cabin is made of clean and durable materials, saving time for cleaning and maintenance.

Scanvogn portable decontamination trailers are ideal for a range of industries and applications such as:

  • Construction Sites
  • Demolition Sites

Check out more information on the manufacturers website.

Additional information

Weight 5 kg
Manufacturer

Scanvogn

Model Name

3 person decontamination unit with water flushing toilet

Model Number

1800052/1850053

Internal Diamensions

5596 x 2176 x 2100 mm

External Diamensions

5700 x 2280 x 2900 mm

Own Weight

1550 kg

Total Weight

1800 kg

Capacity

3 people

Facilities

Toilet, waste disposal, shower cabinet, 2 hand basins Refrigerator, coffee machine, notice board Fixed table 1100 x 690 mm, 4 chairs 2 fixed benches, 6 steel cupboards Windows: 1 1245 x 825 mm, 2 510 x 410 mm 2 towel holders, 8 coat hooks Elephant grate, free standing steps 3 radiators 30 L water heater LED light strip Electrical circuit panel

Description

Decontamination trailer, zone 1 contains storage for dirty clothing, shower and hand basin. In zone 2 it contains an office area, water flushing toilet and cupboards. For further information see the trailer info and more info tabs below. GST not included in price.
AL-KO CHASSIS – Using German AL-KO parts on all standardised chassis to ensure you one of the best trailer systems on the market. Rubber torsion-independent suspensions make a smoother ride with maximum protection of goods being carried.
VISABILITY – All external vehicle lights are high and low, high-quality LED sealed for high visibility whilst travelling.
BEST PROTECTION – Galvanising is carried out after the chassis has been mechanically machined so that all edges and bolt holes are also protected.
FULLY MOLDED CURVED ROOF – Molded roof with a smooth curvature to optimise strength and direct water/snow and dirt away from the centre of the roof to the gutter -front and rear.
GUTTER SYSTEM – Directional gutters along the sides to gutter at each gable to direct water and dirt away from users, doors and windows.
DURABLE PANELS – Using UV-stabilised bright white fibreglass which contains a high number of fibres for best strength and durability. Totally weatherproofed and the perfect base for vinyl wrapping.
EU – CERTIFIED – All our standard windows are gas-filled double glazing for extreme thermal efficiency, and screen boxes and lights are EC certified. Our wagons can therefore be driven legally throughout the EU and Au, in extreme heat and cold.
STRONG WALLS – All external walls are seam cut and placed so that the angles close tightly around the floor for maximum strength and tightness.
ENERGY-FRIENDLY LIGHT – Using daylight white LED light strips in all rooms, which gives you a comfortable white and energy-friendly light with a modern look.
SPECIAL COMPONENTS – We produce several of our own sub-components ourselves, so we can offer you higher quality at a reasonable price.
GUARANTEED SPARE PARTS – We have a large spare parts warehouse, where most parts can be shipped from day to day.
COMPACT LAMINATE – All our table tops are high-density compact laminate which will not rot or create mould. This makes them resistant to water and humidity & bacteria. Excellent for testing or catering rooms.
TOUCH-FREE FITTINGS – Option to choose touch-free fittings or toilet flush. (Specific to Covid-19 compliance) With durable/fully washable materials, so you spend as little time on cleaning and maintenance as possible.
SPACIOUS – With ceiling heights of 2100mm and bigger and widths from up to 2380mm, we pride ourselves on having the most spacious models.
TOWABILITY – Our trailer systems use lightweight low-tare strong chassis, combined with very lightweight panels, we know we have the lightest, most efficient mobile room system available. Overrun mechanical all-wheel drum braked, with breakaway safety cables and independent handbrake – there is no adjustment needed by the user.
ROI – All in all, with great resale values, this gives you the best business investment, easiest to manage, most sustainable fuel-saving mobile trailer system, on the market.
