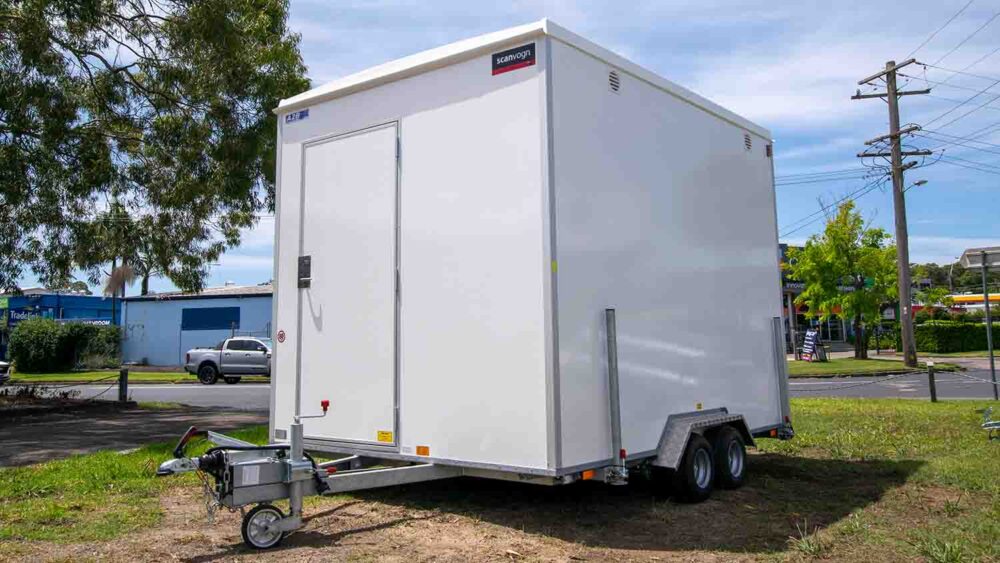

320-disability-front view of tech room
Intyernal disability portable bathroom, toilet.
320 Accessable bathroom trailer - showing ramp position -side wiew
320 Accessable bathroom trailer - showing hot water storage
disabled-toilet
disabled-toilet
disabled toilet
disabled-toilet
disabled-toilet
320 Accessable bathroom trailer - showing ramp position -away
320 Accessable bathroom trailer - showing ramp position

Scanvogn – 320 Accessible Bathroom Trailer

Accessible Shower & Toilet Trailer 320

Portable disability bathroom – easy access

Portable – accessible -disability bathroom with a shower and toilet in one simple solution. Full width compliant ramp for wheelchair and ambulant access. This unit also comes in a smaller sized unit without a shower in the Disability Unit Toilet 240.  This accessible shower & toilet trailer bathroom,  has more space than most standard toilets with an extra wide door, greater internal access and space. The cabin contains a toilet support, a handle fitting, an easy to access shower and a separate technical room. The shower base is recessed into the floor, for ease of use. The chassis is lower than normal trailers, because of its 8” or 10” wheels. This reduces the ramp angle of the slope to either 7 or 10 degrees. 3.2m long, macerator waste pump out, electric direct hot water, complete washable walls, floor and ceiling. Thermally insulated from direct heat gain, 50mm walls and 120mm single piece roof with gutters diverting rain to sides. Four passive air vents, double glazed Upvc openable window. Full strip white Led to ceiling, full width door Led with day/night sensor on main door/ramp. Support stands to each corner. Safety trip switched fuse board with either 10A or 15A supply.  20m freshwater and waste water heavy duty hose pipes included. Galvanised Al-ko trailer chassis EC certified with override braking, jockey wheel and breakaway cable. All road lighting -high quality Led to high and low level. 80km/h rated.  Mechanical extraction, shower waste extraction and many other options available.

The disability – accessible bathroom trailer has dedicated use for:

  • People whose homes are undergoing renovation
  • Outdoor large events such as festivals, weddings and markets.
  • Construction sites where staff with lack of mobility need access to an onsite toilet and shower.
  • People going to caravan or holiday parks that require mobility accessible toilets.
  • Carers who need a mobility accessible toilet available when going on day trips to public parks, beaches, etc.
  • NDIS facilities or specified disability service facilities.

All Scanvogn cabins towable by all rated vehicles of 1000kg capacity, are also customisable so if the standard solution isn’t quite what you need,  you can make your portable bathroom exactly the way you want it. There is a range of additional options that can be included. A customised unit can be designed to offer several additional support functions, so that even people who need a lot of help will feel safe. In addition to a toilet support, a hand fitting and a ramp, you can order a customised cabin that also comes with a shower trolley, ceiling hoist and built on a height-adjustable chassis for easier access.

This trailer system when properly maintained will have a possible lifespan of 20 years.
Registration accepted in all states, with stamp duty exemption for personal or business use.

Take A Look Inside

[wpvr id=”8496″]

Toilet Type

This accessible model comes equipped with our standard flushing toilet waste disposal. For people who have a connection to external water and drainage on site, then this is the toilet solution for you. The toilet works like a normal toilet in the home (but with disposal for extra reliability) and therefore feels natural and comfortable. We supply the toilet in an upright or wall-mounted version, and with or without visible pipes. If the pipes are hidden, the cabin is built with a technical compartment, for easy servicing of the toilet. This toilet type is also used in our 2in1 240A toilet units and 4+2 420 toilet units.

Easy To Use & Clean

The trailer is connected to a standard towbar and can be set up and ready in a few minutes. This makes it possible to move the trailer from place to place quickly and efficiently without any hassle. The trailer is made of clean and durable materials, and sleek minimalistic designs, saving time for cleaning and maintenance.

Ideal For

Scanvogn portable disability accessible shower & toilet trailers are ideal for a range of industries and applications such as:

  • Music Festivals
  • Catering & Hospitality Events
  • Field Day Events
  • Glamping Grounds
  • Horse & Country Events
  • Motor Racing
  • Construction & Demolition Sites
  • Exhibitions & Shows
  • Outdoor Events
  • Private Functions
  • Sporting Events

The trailers provide easily accessible, clean and hygienic ablution facilities for customers, guests and staff.

Categories: , Tags: , , , , , , , , , ,

Additional information

Weight5 kg
Manufacturer

Scanvogn

Model Name

Disabled Bathroom with grinder 320

Model Number

123890

Internal Dimensions

2186 x 2176 x 2100 mm

External Dimensions

3200 x 2280 x 2700 mm

Own Weight

800 kg

Total Weight

900 kg

Capacity

1 person

Facilities

Wall-mounted toilet, waste disposal, hand basin with hand fitting Lowered shower cabinet, floor drainage Toilet support, aluminium ramp (for wheel chair) Mirror 900 x 500 mm Extra wide door 922 mm, windows: 1 510 x 410 mm 4 towel holders, 2 coat hooks Technical compartment, electric ventilation, 240V – 16 A CEE inlet, 30 L water heater, LED light strip, Electrical circuit panel

Description

Portable disability bathroom, with wall mounted standard flushing toilet with macerator waste disposal, thermostatic shower, full width ramp and extra wide door. This unit is larger and more roomier than the 240 model. NDIS suitable.
• AL-KO CHASSIS – Using German AL-KO parts on all standardized chassis to ensure you one of the best trailer systems on the market. Rubber torsion-independent suspensions make a smoother ride with maximum protection of goods being carried.
• VISABILITY – All external vehicle lights are high and low, high-quality LED sealed for high visibility whilst travelling.
• BEST PROTECTION – Galvanizing is carried out after the chassis has been mechanically machined so that all edges and bolt holes are also protected.
• FULLY MOLDED CURVED ROOF – Molded roof with a smooth curvature to optimize strength and direct water/snow and dirt away from the centre of the roof to the gutter -front and rear.
• GUTTER SYSTEM – Directional gutters along the sides to gutter at each gable to direct water and dirt away from users, doors and windows.
• DURABLE PANELS – Using UV-stabilised bright white fibreglass which contains a high number of fibres for best strength and durability. Totally weatherproofed and the perfect base for vinyl wrapping.
• EU – CERTIFIED – All our standard windows are gas-filled double glazing for extreme thermal efficiency, and screen boxes and lights are EC certified. Our wagons can therefore be driven legally throughout the EU and Au, in extreme heat and cold.
• STRONG WALLS – All external walls are seam cut and placed so that the angles close tightly around the floor for maximum strength and tightness.
• ENERGY-FRIENDLY LIGHT – Using daylight white LED light strips in all rooms, which gives you a comfortable white and energy-friendly light with a modern look.
• SPECIAL COMPONENTS – We produce several of our own sub-components ourselves, so we can offer you higher quality at a reasonable price.
• GUARANTEED SPARE PARTS – We have a large spare parts warehouse, where most parts can be shipped from day to day.
• COMPACT LAMINATE – All our table tops are high-density compact laminate which will not rot or create mould. This makes them resistant to water and humidity & bacteria. Excellent for testing or catering rooms.
• TOUCH-FREE FITTINGS – Option to choose touch-free fittings or toilet flush. (Specific to Covid-19 compliance) With durable/fully washable materials, so you spend as little time on cleaning and maintenance as possible.
• SPACIOUS – With ceiling heights of 2100mm and bigger and widths from up to 2380mm, we pride ourselves on having the most spacious models.
• TOWABILITY – Our trailer systems use lightweight low-tare strong chassis, combined with very lightweight panels, we know we have the lightest, most efficient mobile room system available. Overrun mechanical all-wheel drum braked, with breakaway safety cables and independent handbrake – there is no adjustment needed by the user.
• ROI – All in all, with great resale values, this gives you the best business investment, easiest to manage, most sustainable fuel-saving mobile trailer system, on the market.
