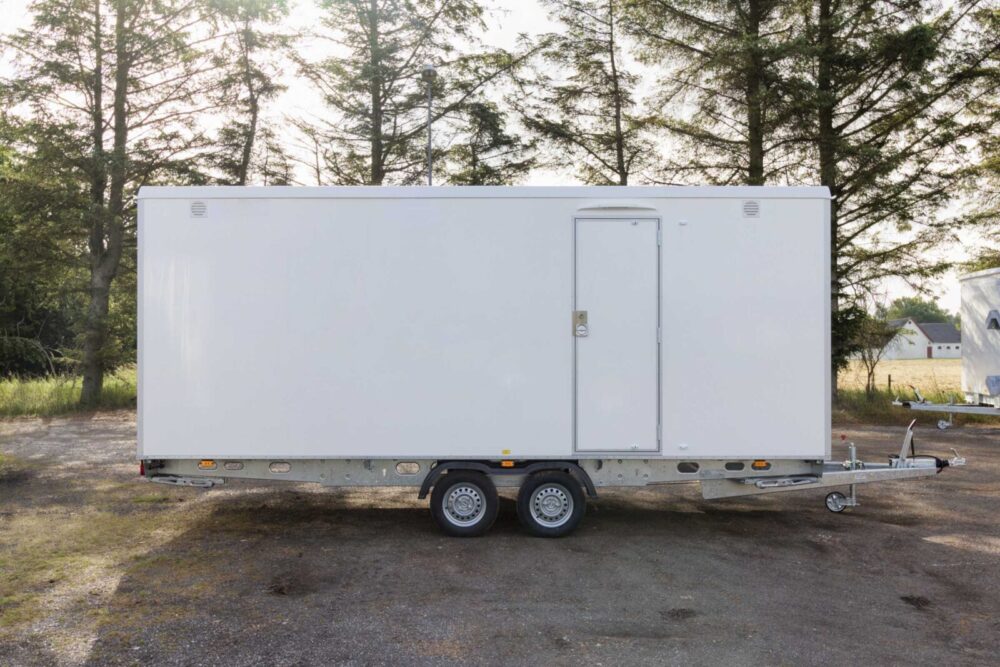

Staff Cabin 570

An office or lunchroom trailer for staff

The staff cabin trailer (crew crib) is one of our most popular models and stands strong as a main site office. You can upgrade the cabin trailer with mini kitchen, utility room and extra shelves. All Scanvogn cabin trailers are customisable, so if the standard solution is not quite what you need, you can make it exactly the way you want it. These units have been specially designed for the construction industry to meet specific needs and requirements.

The 570 model trailer is not the biggest standard office trailer unit. It is igger than the 320 trailer and the 420 trailer portable offices and the same size as the standard 570 office trailer, pioneer trailer, & environmental cabin trailer. In addition to the standard office cabin trailers, the staff cabin can come with lockers for storage, and a shower.

TOILET TYPE

This site trailer model comes equipped with our standard ceramic flushing toilet with waste disposal pump. For people who have a connection to external water and drainage on site, then this is the toilet solution for you. The toilet works like a normal toilet in the home (but with disposal for extra reliability) and therefore feels natural and comfortable. We supply the toilet in an upright or wall-mounted version, and with or without visible pipes. If the pipes are hidden, the cabin is built with a technical compartment, for easy servicing of the toilet. You can choose to change the toilet type to any of our 4 toilet types including Vacuum and combustion. Or you can choose to have your portable office without a toilet for additional space.

With water flushing toilet from $34,452
With toilet & grinder from $34,897

EASY TO USE AND CLEAN

The site office trailer is connected to a standard tow-bar and can be set up and ready in a few minutes. This makes it possible to move the unit from place to place quickly and efficiently without any hassle. The trailer cabin is made of hygienic and durable materials, saving time for cleaning and maintenance.

Ideal For

Scanvogn portable staff block trailers are ideal for a range of industries and applications such as:

Music Festivals
Catering & Hospitality Events
Field Day Events
Glamping Grounds
Horse & Country Events
Motor Racing
Construction & Demolition Sites
Exhibitions & Shows
Outdoor Events
Private Functions
Sporting Events

The trailers provide clean and hygienic accommodation facilities for staff.

Additional information

Weight	5 kg
Manufacturer	Scanvogn
Model Name	10 person office unit with water flushing toilet
Model Number	1800043/1850046
Internal Trailer Sizes	5596 x 2176 x 2100 mm
External Trailer Sizes	5700 x 2280 x 2900 mm
Trailer Tare Weight	1300 kg
Trailer Total Weight	1500 kg
Trailer Capacity	10 people (12 people with no toilet)
Trailer Facilities	Toilet with waste disposal, hand basin, mirror Fridge, coffee machine, notice board Fixed table 1800 x 690 mm, 10 chairs Attachable table 1200 x 690 mm Windows: 1 1245 x 825 mm with shutter 2 towel holders, 10 coat hooks 2 attachable steps 3 radiators 15 L water heater LED light strip Electrical circuit panel

Description

This office trailer is state of the art, with a galvanised chassis, thermal insulation and European design. The trailer comes with a toilet with waste disposal, hand basin, mirror, fridge, coffee machine, notice board, fixed table 1800 x 690 mm, 10 chairs, attachable table 1200 x 690 mm, windows: 1 1245 x 825 mm with shutter, 2 towel holders, 10 coat hooks, 2 attachable steps, 3 radiators.
• AL-KO CHASSIS – Using German AL-KO parts on all standardised chassis to ensure you one of the best trailer systems on the market. Rubber torsion-independent suspensions smoth ride with maximum protection of goods being carried.
• VISABILITY – All external vehicle lights are high and low, high-quality LED sealed for high visibility whilst travelling.
• BEST PROTECTION – galvanising is carried out after the chassis has been mechanically machined so that all edges and bolt holes are fully protected.
• FULLY MOLDED CURVED ROOF – Molded roof with a smooth curvature to optimise strength and direct water/snow and dirt away from the centre of the roof to the gutter -front and rear.
• GUTTER SYSTEM – Directional gutters along the sides to gutter at each gable to direct water and dirt away from users, doors and windows.
• DURABLE PANELS – Using UV-stabilised bright white fibreglass which contains a high number of fibres for best strength and durability. Totally weatherproofed and the perfect base for vinyl wrapping.
• EU – CERTIFIED – All our standard windows are gas-filled double glazing for extreme thermal efficiency, and screen boxes and lights are EC certified. Our wagons can therefore be driven legally throughout the EU and Au, in extreme heat and cold.
• STRONG WALLS – All external walls are seam cut and placed so that the angles close tightly around the floor for maximum strength and tightness.
• ENERGY-FRIENDLY LIGHT – Using daylight white LED light strips in all rooms, which gives you a comfortable white and energy-friendly light with a modern look.
• SPECIAL COMPONENTS – We produce several of our own sub-components ourselves, so we can offer you higher quality at a reasonable price.
• GUARANTEED SPARE PARTS – We have a large spare parts warehouse, where most parts can be shipped from day to day.
• COMPACT LAMINATE – All our table tops are high-density compact laminate which will not rot or create mould. This makes them resistant to water and humidity & bacteria. Excellent for testing or catering rooms.
• TOUCH-FREE FITTINGS – Option to choose touch-free fittings or toilet flush. (Specific to Covid-19 compliance) With durable/fully washable materials, so you spend as little time on cleaning and maintenance as possible.
• SPACIOUS – With ceiling heights of 2100mm and bigger and widths from up to 2380mm, we pride ourselves on having the most spacious models.
• TOWABILITY – Our trailer systems use lightweight low-tare strong chassis, combined with very lightweight panels, we know we have the lightest, most efficient mobile room system available. Overrun mechanical all-wheel drum braked, with breakaway safety cables and independent handbrake – there is no adjustment needed by the user.
• ROI – All in all, with great resale values, this gives you the best business investment, easiest to manage, most sustainable fuel-saving mobile trailer system, on the market.
